替代型號HLK-0.66-K
| Type | Ratio(A) | Burden(VA) | |
| Class:0.5 | Class:1.0 | ||
| HLK-0.66 | 1000/5 | 5 | 10 |
| HLK-816 | 1500/5 | 7.5 | 10 |
| HLK-816 | 2000/5 | 10 | 15 |
| HLK-816 | 2500/5 | 15 | 20 |
| HLK-816 | 3000/5 | 20 | 25 |
| HLK-816 | 4000/5 | 20 | 25 |
| HLK-816 | 5000/5 | 20 | 25 |
| HLK-816 | 6000/5 | 20 | 25 |

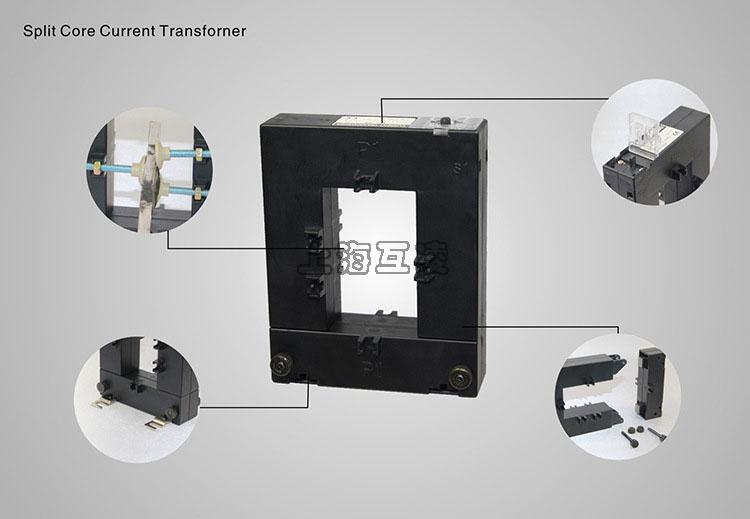

細節圖

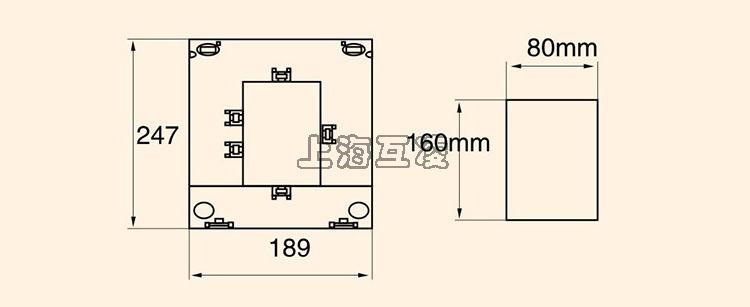

安裝尺寸圖 及內徑圖

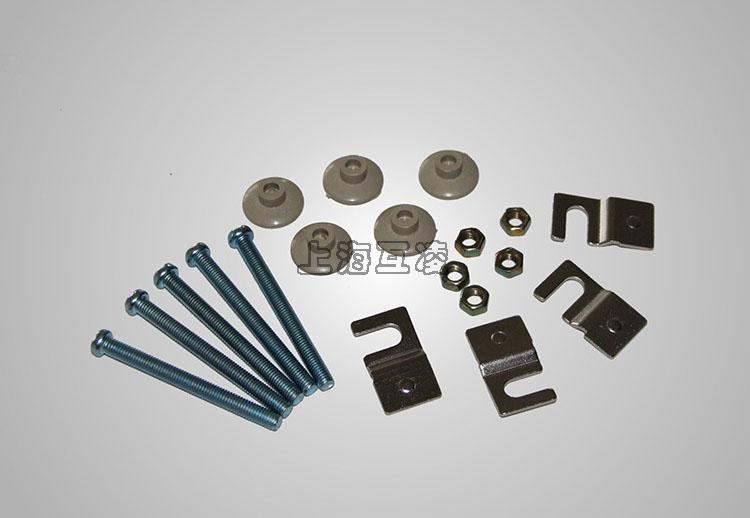

配件圖
DESCRIPTION
The DP series current transformer has been specially designed to facilitate their installation in
newor already existing net works. They may be installed without opening any cable or bus-bar
circuit.The connection of conventional CTs usually requires the interruption of the primary side
current to pass cables or bus-bar through the transformer core to connect such cables to the
primary terminals.
DP系列分離式互感器是為了方便安裝的電路系統或電網改造系統中安裝而特殊設計的，它可在不斷
開電纜或者匯流排的情況下進行安裝，即節省了安裝時間又節約維護費用。
FEATURE
Two built in fixing methods:Base/Busbar
兩種安裝方式：底線/匯流排
Very easy to install
筒易安裝
Wide inner window, allowing clamping of big cables or bus-bars
內子徑寬，允許寬電纜線和匯流排的通過
Wide range of sizes to accommodate all the existing installation
尺寸滿足多樣安裝
Primary current from 5A t0 5000A
額定一次電流從5A到5000A
SPECIFICATIONS
| Rated Frequency（額定頻率） Rated Test Voltage（耐受電壓） Rated short-time thermal current(lth)(額定熱電流) Rated dynamic curren t (ldyn)（動穩定電流） Rated voltaae (Um)（額定電壓) Contin uou s -ove rload (過載） Operating temperature（工作溫度范圍） Housing self-extinguishing class（外殼阻燃等級） Safety factor（準確限制系數） Secondary current（二次電流） |
50/60Hz 3kv AC.(1min) 60ln 2.5lth 0.72Kv AC． 1.2ln -10℃~50℃ VO FS5 5A/1A |
STANDARD
IEC60044-1 GB1208-2006

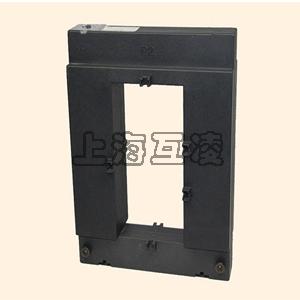

產品名稱：AKH-0.66-K電流互感器
型號：AKH-0.66-K
聲明：本頁AKH-0.66-K電流互感器的接線圖、外形尺寸及文字等信息僅供參考用，如有改動不另行通知。訂購前請來電咨詢，我們有專業人士為您選型。 另外可根據客戶要求，訂制非標產品，歡迎來電訂購，電話021-31263351。
